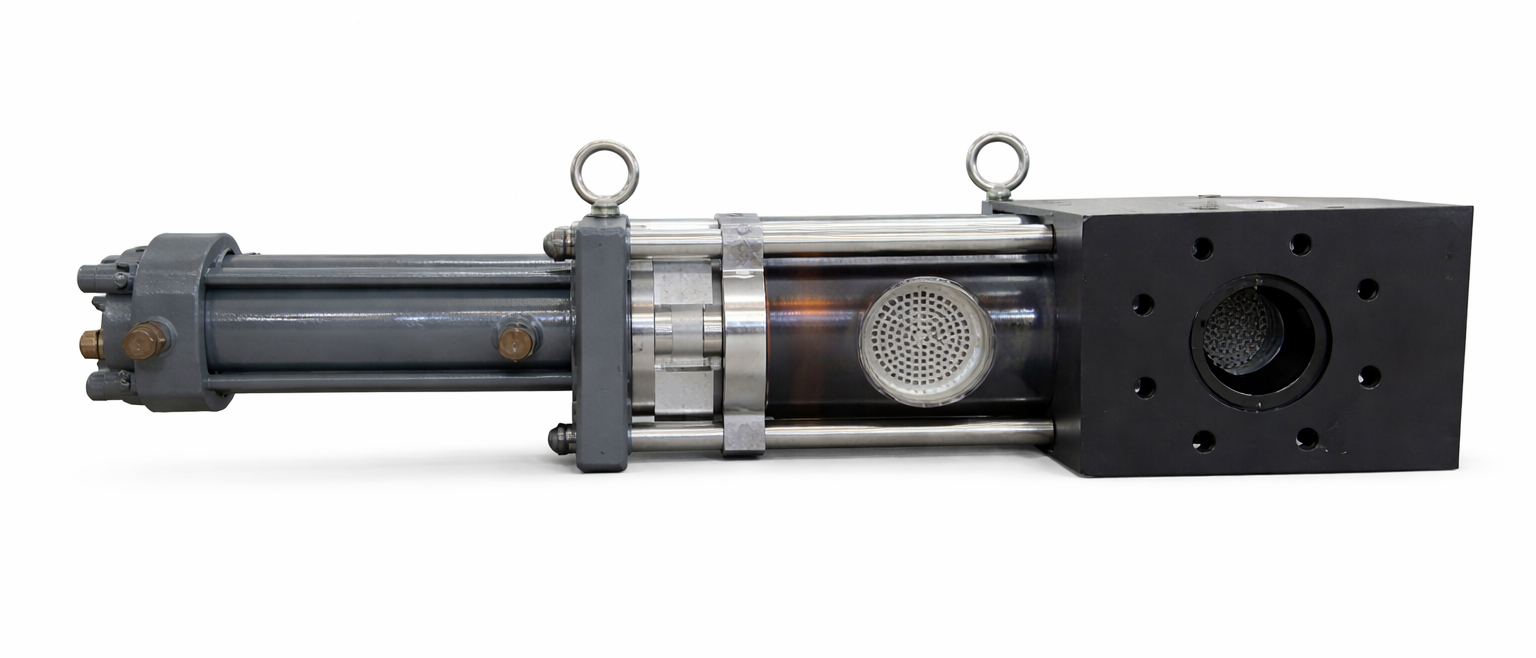

HYDRAULIC PISTON TYPE SCREEN CHANGER
Home >> Hydraulic Piston Type Screen Changer
Special Features
Matruchaya Offers, High Quality Screen Changers, Hydraulic cylinders & Power Pack System with latest Production technology, All Products made & tested with precise supervision under one roof. Alloy steel & other special Material are used for leak proof & Sound design. Which gives Maximum output & leads to 100% utilization of our products.
Model | Screen Dia. (MM) | FILTER AREA (CM SQ) | SUITABLE OUTPUT (KG/ HR) | HYDRAULIC POWERPACK SYSTEM | DIMENSION (MM) | ||
L | W | H | |||||
MIHPI 60 | 60 | 28 | 40 TO 150 | 2-HP, 4.3 LPM | 725 | 175 | 175 |
MIHPI 80 | 80 | 50 | 60 TO 250 | 2-HP, 4.3 LPM | 745 | 190 | 190 |
MIHPI 90 | 90 | 75 | 90 TO 275 | 3-HP, 4.3 LPM | 830 | 220 | 220 |
MIHPI 100 | 100 | 78 | 100 TO 300 | 3-HP, 4.3 LPM | 880 | 220 | 210 |
MIHPI 130 | 130 | 133 | 150 TO 350 | 3-HP, 4.3 LPM | 1060 | 270 | 270 |
MIHPI 150 | 150 | 175 | 200 TO 500 | 5-HP, 7.2 LPM 725 | 1175 | 310 | 310 |
Matruchaya Offers, High Quality Screen Changers, Hydraulic cylinders & Power Pack System with latest Production technology, All Products made & tested with precise supervision under one roof. Alloy steel & other special Material are used for leak proof & Sound design. Which gives Maximum output & leads HYDRAULIC PISTON TYPE SCREEN CHANGER to 100% utilization of our products.
Model | Screen Dia. (MM) | FILTER AREA (CM SQ) | SUITABLE OUTPUT (KG/ HR) | HYDRAULIC POWERPACK SYSTEM | DIMENSION (MM) | ||
L | W | H | |||||
MIMPI 60 | 60 | 28 | 40 TO 100 | MANUAL | 725 | 175 | 175 |
MIHPI 80 | 80 | 50 | 60 TO 130 | MANUAL | 650 | 175 | 190 |
MIHPI 90 | 90 | 75 | 60 TO 150 | MANUAL | 815 | 220 | 210 |
MIHPI 100 | 100 | 78 | 70 TO 170 | MANUAL | 750 | 220 | 210 |
