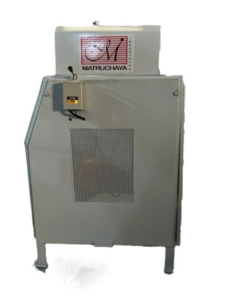

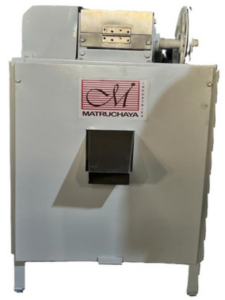

STRAND PELLETIZER
Home >> Strand Pelletizer
Features of Strand Pelletizer
- Polymer Strands are manually feed into the Pelletizer
- Material cooling properties determines the length of the water bath
- Flexible for material change-overs
- Suitable for master batch, compounding and engineering plastics
- Integrates the Pelletizer, Water Bath, and Air Knife on a single Base.
- Cost effective for Plastic processing applications.
- Mechanical & Electrical Safeties prevents unsafe start-up
NO | MODEL | MOTOR HP | OUTPUT | SIZE |
1 | MISCUT65-75 | 2 HP | 40 TO 80 KG/HR | 6” Blade |
2 | MISCUT90-100 | 2 HP | 90 TO 120 KG/HR | 6” Blade |
3 | MISCUT110-120 | 2 HP | 130 TO 200 KG/HR | 6” Blade |
4 | MISCUT130-150 | 3 HP | 170 TO 250 KG/HR | 8” Blade |
5 | MISCUT160 | 5 HP | 260 TO 300 KG/HR | 10” Blade |
