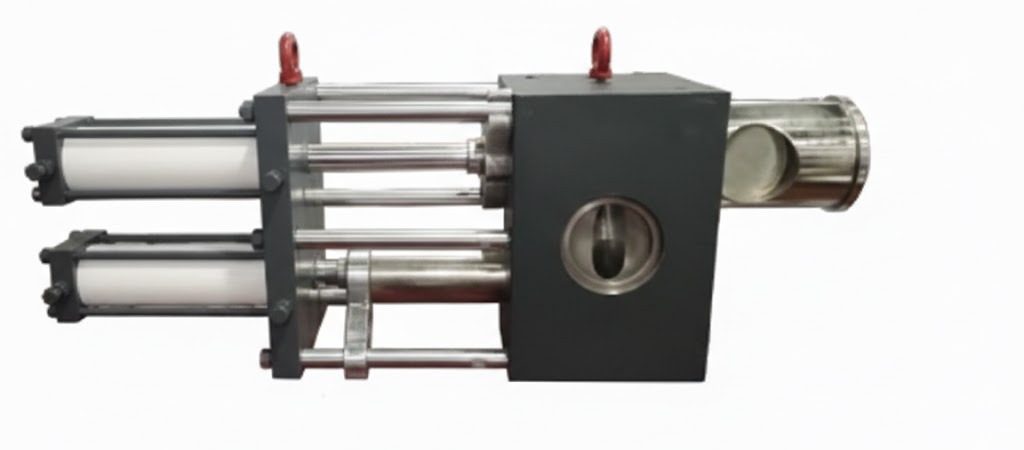

TWIN PISTON TYPE SCREEN CHANGER
Home >> Twin Piston Type Screen Changer
Special Features
Matruchaya Offers, High Quality Screen Changers, Hydraulic cylinders & Power Pack System with Solenoid valve & Electric Panel latest Production technology, All Products made & tested with precise supervision under one roof. Alloy steel & other special Material are used for leak proof & Sound design. Which gives Maximum output & leads to 100% utilization of our products. It is Continuous Type Design.
Model | Screen Dia. (MM) | FILTER AREA (CM SQ) | SUITABLE OUTPUT (KG/ HR) | HYDRAULIC POWERPACK SYSTEM | DIMENSION (MM) | ||
L | W | H | |||||
MIHTP 60 | 60 | 28 X 2 | 40 TO 100 | 2-HP, 4.3 LPM | 900 | 225 | 360 |
MIHPI 80 | 80 | 50 X 2 | 60 TO 130 | 2-HP, 4.3 LPM | 1000 | 250 | 390 |
MIHPI 90 | 90 | 63 X 2 | 60 TO 150 | 3-HP, 7.2 LPM | 1000 | 250 | 390 |
MIHPI 100 | 100 | 78 X 2 | 70 TO 170 | 3-HP, 7.2 LPM | 1100 | 270 | 400 |
MIHTP 130 | 130 | 132 X 2 | 100 TO 250 | 5-HP, 7.2 LPM | 1200 | 300 | 430 |
MIHTP 150 | 150 | 155 X 2 | 500 TO 700 | 5-HP, 7.2 LPM | 1270 | 400 | 560 |

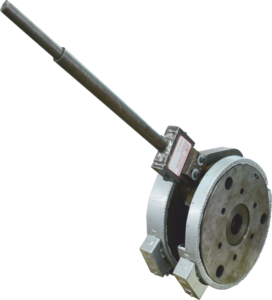

Matruchaya Offers, High Quality Screen Changers, Hydraulic cylinders & Power Pack System with Solenoid valve & Electric Panel latest Production technology, All Products made & tested with precise supervision under one roof. Alloy steel & other special Material are used for leak proof & Sound design. Which gives Maximum output & leads to 100% utilization of our products. It is Continuous Type Design.
Model | Screen Dia. (MM) | FILTER AREA (CM SQ) | SUITABLE OUTPUT (KG/ HR) | HYDRAULIC POWERPACK SYSTEM | DIMENSION (MM) | ||
L | W | H | |||||
MILT 50 | 50 | 20 | 40 TO 130 | HAND OPERATED | 200 | 120 | 630 |
MIHPI 60 | 60 | 28 | 50 TO 160 | HAND OPERATED | 220 | 130 | 650 |
MIHPI 80 | 80 | 50 | 60 TO 200 | HAND OPERATED | 250 | 140 | 680 |
MILT 90 | 90 | 70 | 70 TO 300 | HAND OPERATED | 320 | 170 | 750 |
MILT 100 | 100 | 78 | 80 TO 300 | HAND OPERATED | 320 | 170 | 750 |
