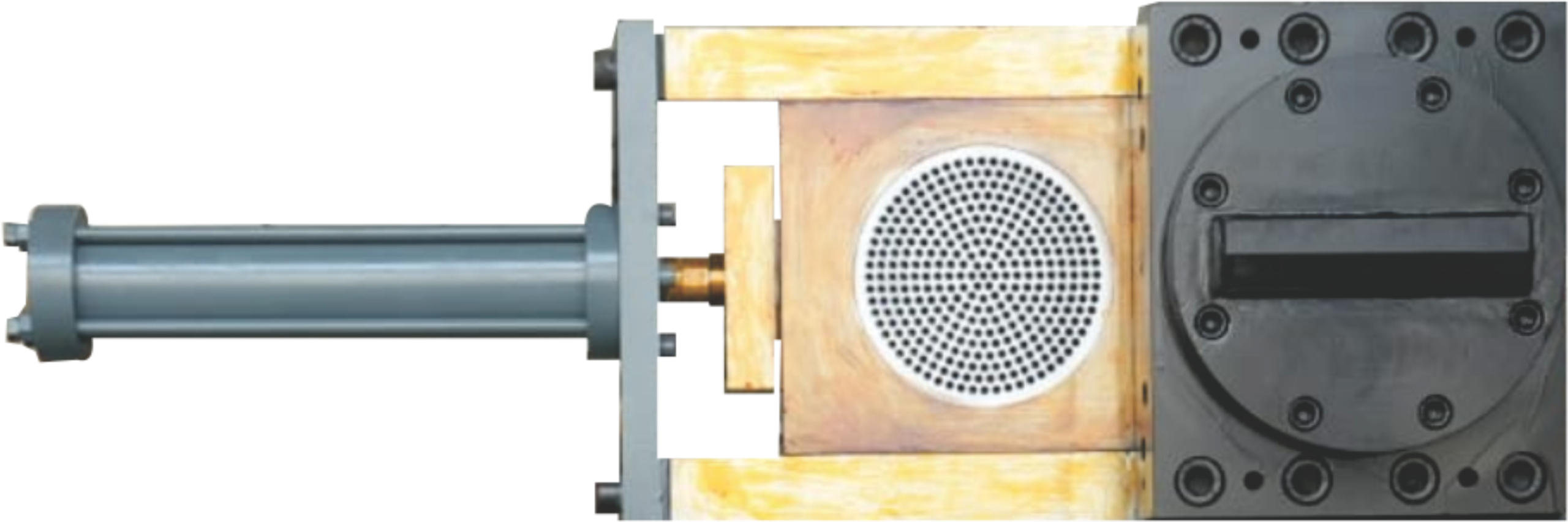

HYDRAULIC PLATEN TYPE SCREEN CHANGER
Home >> Hydraulic Platen Type Screen Changer
Special Features
Matruchaya Offers, High Quality Screen Changers, Hydraulic cylinders & Power Pack System with latest Production technology All Products made & tested with precise supervision under one roof. Alloy steel & other special Material are used for leak proof & Sound design. Which gives Maximum output & leads to 100% utilization of our products.
Model | Screen Dia. (MM) | FILTER AREA (CM SQ) | SUITABLE OUTPUT (KG/ HR) | HYDRAULIC POWERPACK SYSTEM | DIMENSION (MM) | ||
L | W | H | |||||
MIHPL 100 | 105 | 100 | 40 TO 80 | 2-HP, 4.3 LPM | 760 | 175 | 240 |
MIHPL 120 | 125 | 122 | 40 TO 150 | 2-HP, 4.3 LPM | 815 | 210 | 280 |
MIHPL 150 | 155 | 188 | 60 TO 250 | 3-HP, 4.3 LPM | 925 | 210 | 300 |
MIHPL 180 | 185 | 268 | 100 TO 300 | 3-HP, 4.3 LPM | 970 | 220 | 325 |
MIHPL 200 E | 200 | 402 | 150 TO 350 | 3-HP, 4.3 LPM | 1040 | 340 | 350 |
MIHPL 200 S | 205 | 410 | 150 TO 350 | 5-HP, 7.2 LPM | 1040 | 360 | 380 |
MIHPL 225 | 230 | 415 | 150 TO 350 | 5-HP, 7.2 LPM | 1115 | 375 | 395 |
MIHPL 250 | 255 | 510 | 150 TO 350 | 5-HP, 7.2 LPM | 1260 | 405 | 420 |
MIHPL 300 | 305 | 706 | 200 TO 400 | 7.5-HP, 7.2 LPM | 1450 | 420 | 520 |
MIHPL 350 | 355 | 825 | 700 TO 800 | 7.5-HP, 7.2 LPM | 1650 | 550 | 615 |
